Sand cast · Machined · Inspected to print

Low to Medium Volume
Ductile Iron Sand Castings

One accountable partner from print to finished part, starting with tooling we design and control. You'll hear back within one business day.

Trusted by engineers and OEMs
for 60+ years
  • ISO 9001:2015 certified
  • Prototypes to production runs
  • Every print reviewed before tooling
Ductile iron housing sand casting over a line drawing of the same partDuctile iron housing sand casting over a line drawing of the same part
  • 60+ Years in business
  • Certified Pattern makers
  • ISO 9001 2015 certified
  • No minimum Prototype to repeat

What we design around before the tooling is built

These are the problems that usually show up later, at the foundry, in machining, or in the field. We look for them before tooling is built.

  • WALLS

    Thin sections

    Thin walls cool fast and can come out hard and tough to machine. We point out thin walls before tooling.

  • SHRINKAGE

    Heavy sections

    Heavy spots and thick-to-thin changes are where shrink shows up. We point them out before tooling is built.

  • STOCK

    Machined features

    Machined faces and bores need enough stock to clean up. We check stock before tooling.

  • TOLERANCE

    Tolerances vs. sand

    Some print tolerances are tighter than sand casting can hold. We flag those features so they get machining stock instead of becoming rejects.

  • TESTING

    Grade and test callouts

    Higher grades, keel block properties, nodularity, and MT or UT add cost and lead time. We list them on the quote.

  • FIT

    If your part isn't a good fit, we'll tell you quickly.

    You get a straight answer before anyone spends time on a quote.

Capabilities

Ductile iron sand castings from print review through finished, machined parts.

Grades ASTM A536 60-40-18, 65-45-12, 80-55-06, 100-70-03. ADI (austempered ductile iron). Grade chosen for strength, ductility, machinability and section size.
Casting weight 0.1 to 3,000 lb
Minimum wall 0.200" typical. Thinner or heavier depending on the job and section.
Quantity Prototype through repeat production. No minimum order.
Molding Green sand, no-bake, 3D printed molds for prototypes and complex cores
Pattern tooling Wood, urethane, aluminum. Designed and controlled by a certified pattern maker.
Foundry partner Each job goes to the foundry partner best suited to its grade, size and quantity. We oversee it from tooling to finished part.
Heat treat Stress relief, annealed, normalized, austempered (ADI), and others per spec
Machining Finished to print
Finishing Paint, coating, plating
Inspection Magnetic particle, liquid penetrant, dimensional layout, FAIR, PPAP
Industries Defense, power generation, agriculture, engines, locomotive, industrial equipment
Documentation Material certs checked against your print and spec revision. MIL-spec supported.
Quality ISO 9001:2015 certified

Ductile iron castings we've supplied

Thin vanes, cored housings, flanges, and machined features.

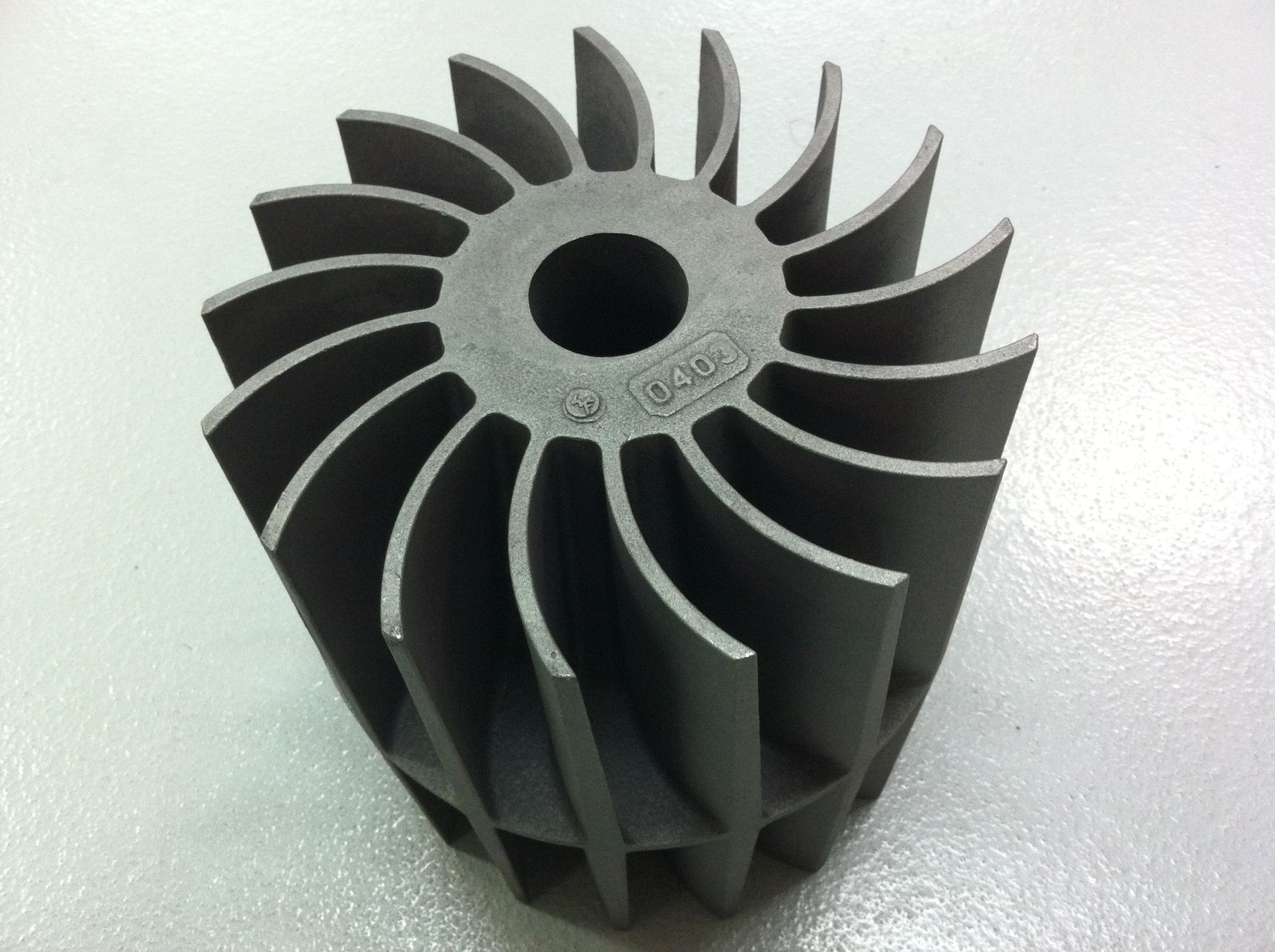

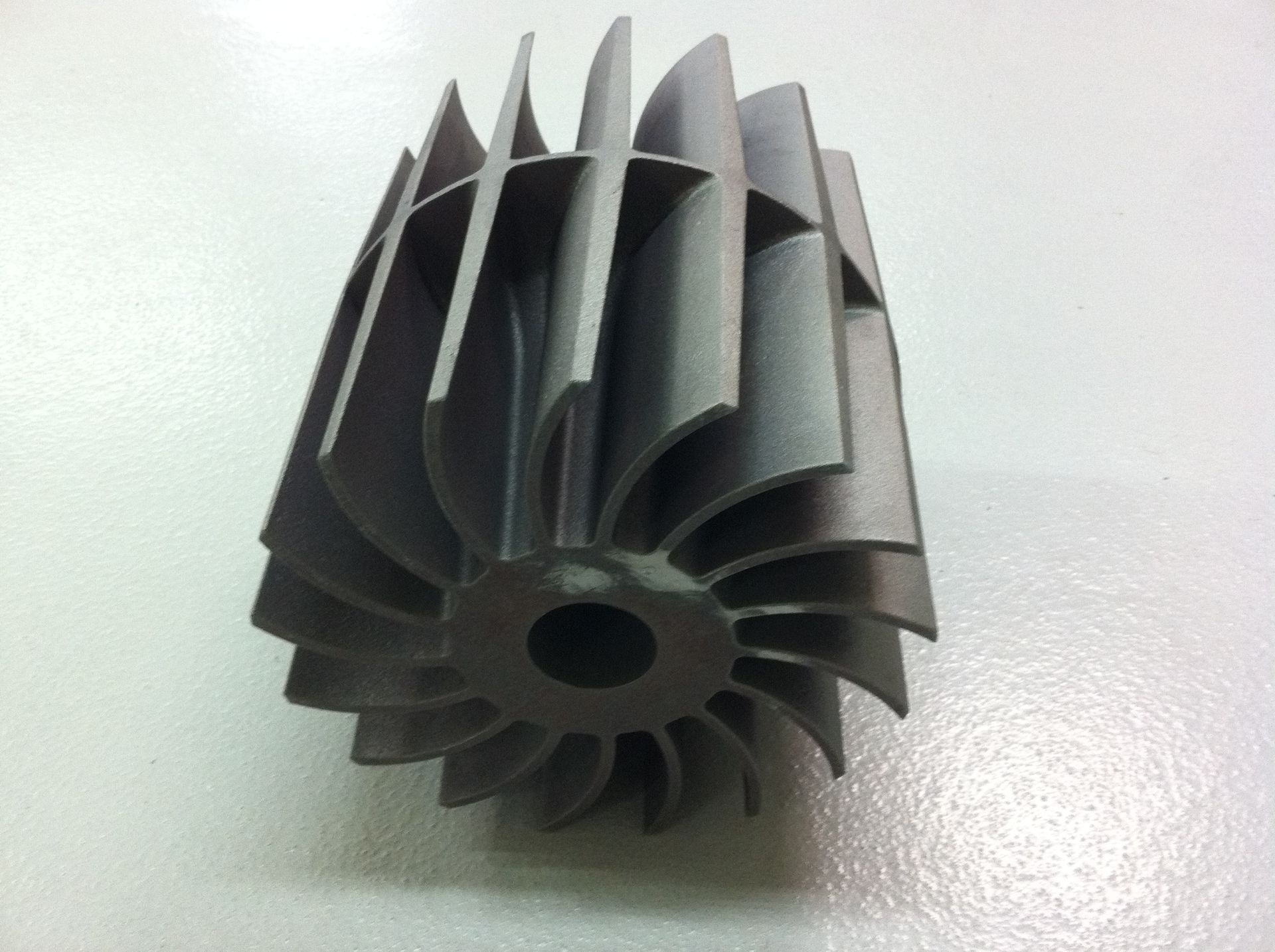

Ductile iron impeller with thin curved vanes
Impeller with thin curved vanes

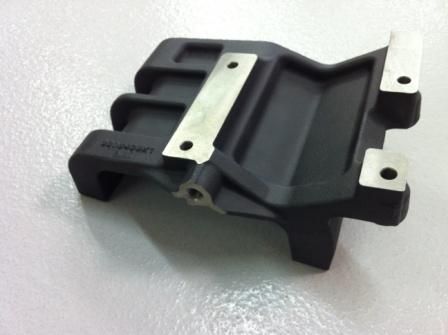

Painted ductile iron bracket
Painted bracket with machined mounting pads
Long ductile iron support with cast gussets
Long support with cast gussets and a bored end boss
Flanged iron ring with machined bore
Flanged ring with machined bore and seal grooves

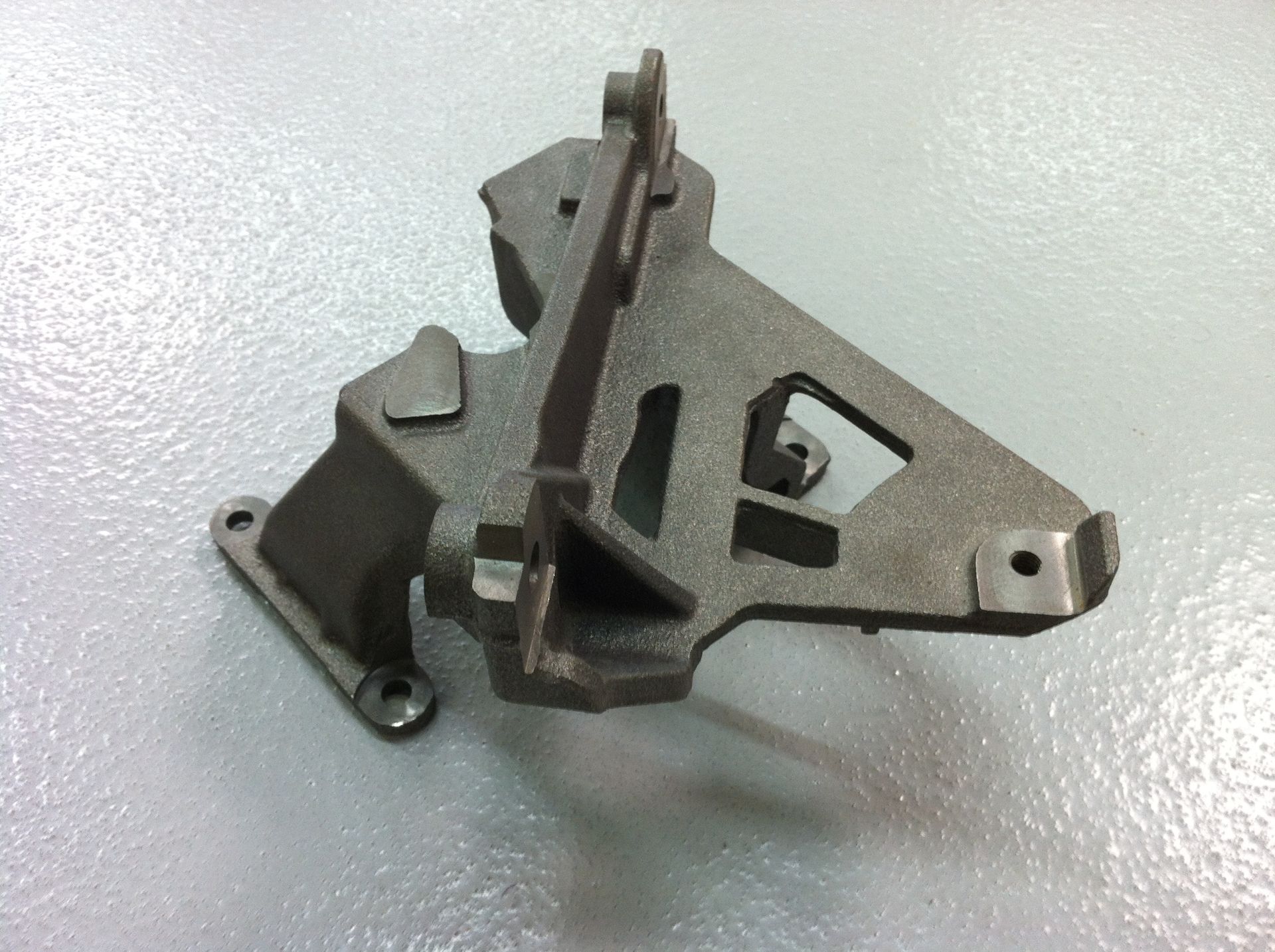

Iron base bracket with cast ribs
Base bracket with cast ribs and an offset arm

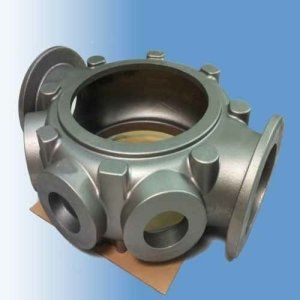

Ductile iron housing with cored passages
Housing with cored passages and a machined bore
Finned motor housing
Finned motor housing

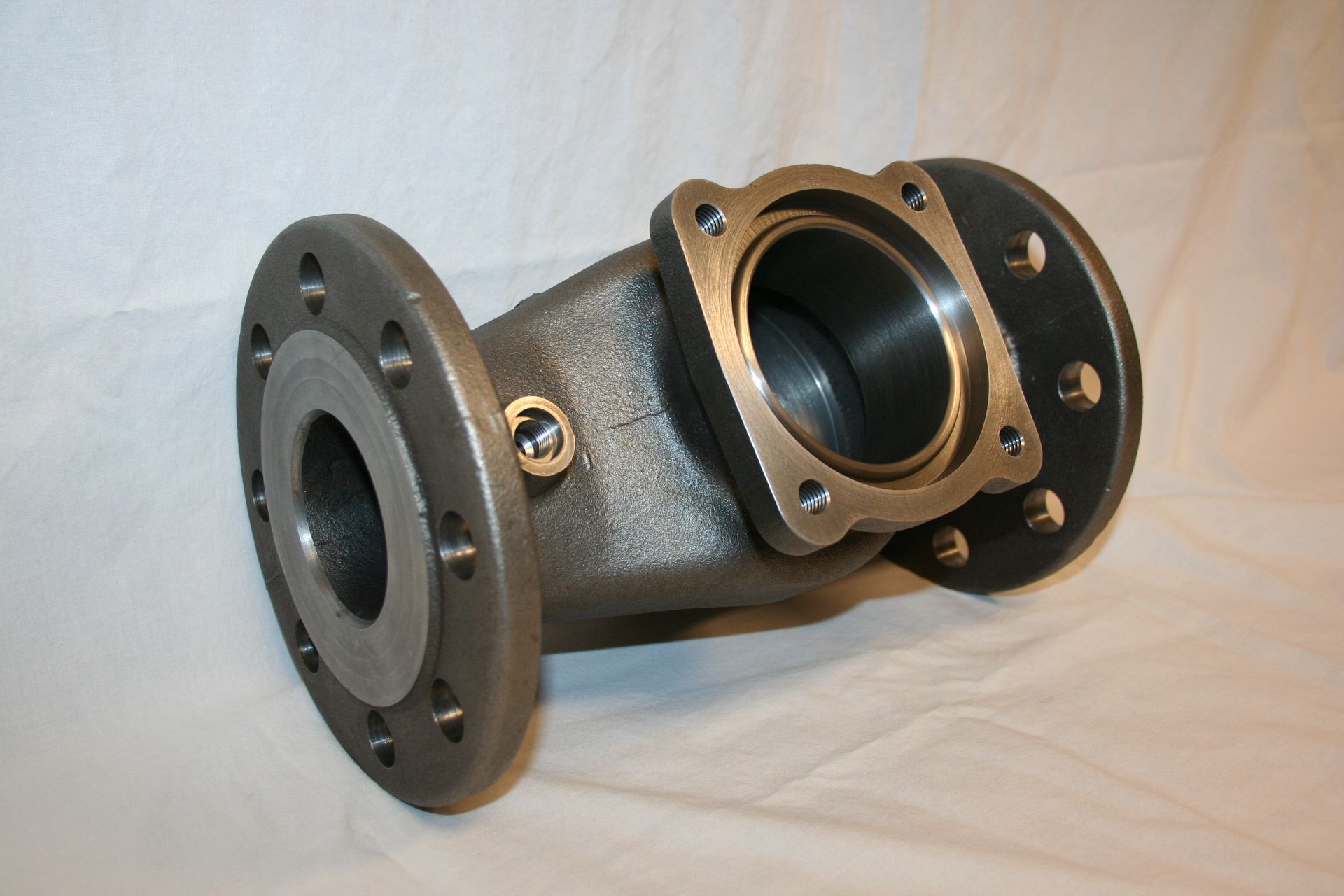

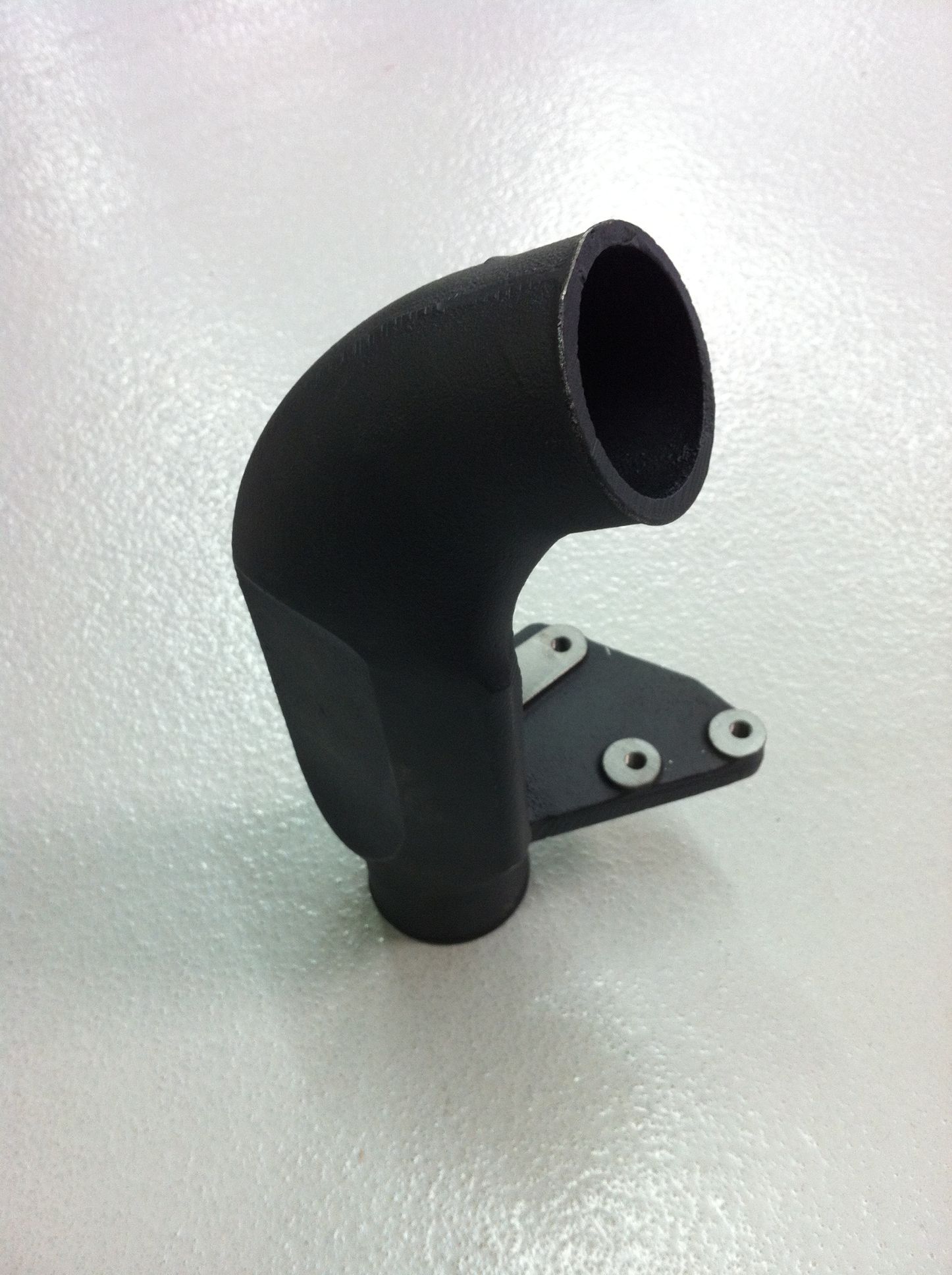

Elbow with a machined mounting base
Elbow with a machined mounting base

Choosing a ductile iron grade

A starting point. The print or the application decides; if the grade on your print is not the best fit for the part, we will tell you.

Grade Typical use Heat treat
60-40-18 Highest ductility and impact toughness in A536; easiest to machine. Pressure-containing parts, valve and pump bodies, low-temperature service. As cast or annealed
65-45-12 General-purpose grade with a good balance of strength, ductility and machinability. Housings, brackets, pump and valve parts. As cast
80-55-06 Higher strength with moderate ductility. Gears, crankshafts, structural and load-bearing parts. As cast or normalized
100-70-03 Highest strength A536 grade we offer. Wear surfaces and high-stress parts; harder to machine. Normalized, or quench and temper
ADI (ASTM A897) Strength close to steel with good wear resistance and toughness. Gears, wear parts, agricultural components. Austempered

Common questions

What buyers usually ask before they send a print.

Do you do prototypes?

Yes. Prototype through repeat production. For quick prototypes and complex cores, 3D printed sand molds need no pattern at all.

Is there a minimum order?

No. One piece or a production run.

Can parts ship machined?

Yes. Machining, heat treat, finishing and inspection are part of one program, so parts arrive finished to print.

What documents come with the parts?

Material certs checked against your print and spec revision. FAIR, PPAP, magnetic particle and liquid penetrant reports when required. ISO 9001:2015 certified.

Do you sign NDAs?

Yes, on request, before you send the print.

What should I send?

PDF drawing and CAD model, grade, quantity, drawing revision and any specs. You will hear back within one business day.

CPM Industries has demonstrated time and time again to be dependable and reliable to work with. They will be there when you need them.

John · Supervisor of Engineering, electric component manufacturer

Send the print.
We'll tell you if it's a fit.

You'll hear back within one business day. The first reply confirms we have your RFQ and tells you if it's a fit. Then we quote. NDAs signed on request.

Send your print to sales@cpm-industries.com
Request a Quote

630.469.8200 · Monday to Friday, 7:30 AM to 4:00 PM CT

What to send

  • 01 PDF drawing and CAD model
  • 02 Grade and quantity
  • 03 Drawing revision and specs
  • 04 Machining, heat treat, inspection, and documentation needs
