Aluminum · Ductile iron · Gray iron · Steel
Sand Castings,
From Print to Finished Part
Sand castings in aluminum, iron and steel, machined and inspected to print. Prototype to medium volume, no minimum.
- ISO 9001:2015 certified
- Prototypes to production runs
- Every print reviewed before tooling
- Made in the USA
- 01 Print review Checked before any tooling is built
- 02 Pattern Designed and controlled by our pattern makers
- 03 Casting Aluminum, ductile iron, gray iron or steel
- 04 Finished part Machined, inspected, certs checked to print
- 60+ Years in business
- Certified Pattern makers
- Up to 3,000 lb Casting weight
- No minimum Prototype to medium volume
Materials
Sand castings from one piece to repeat production, machined and finished to print.

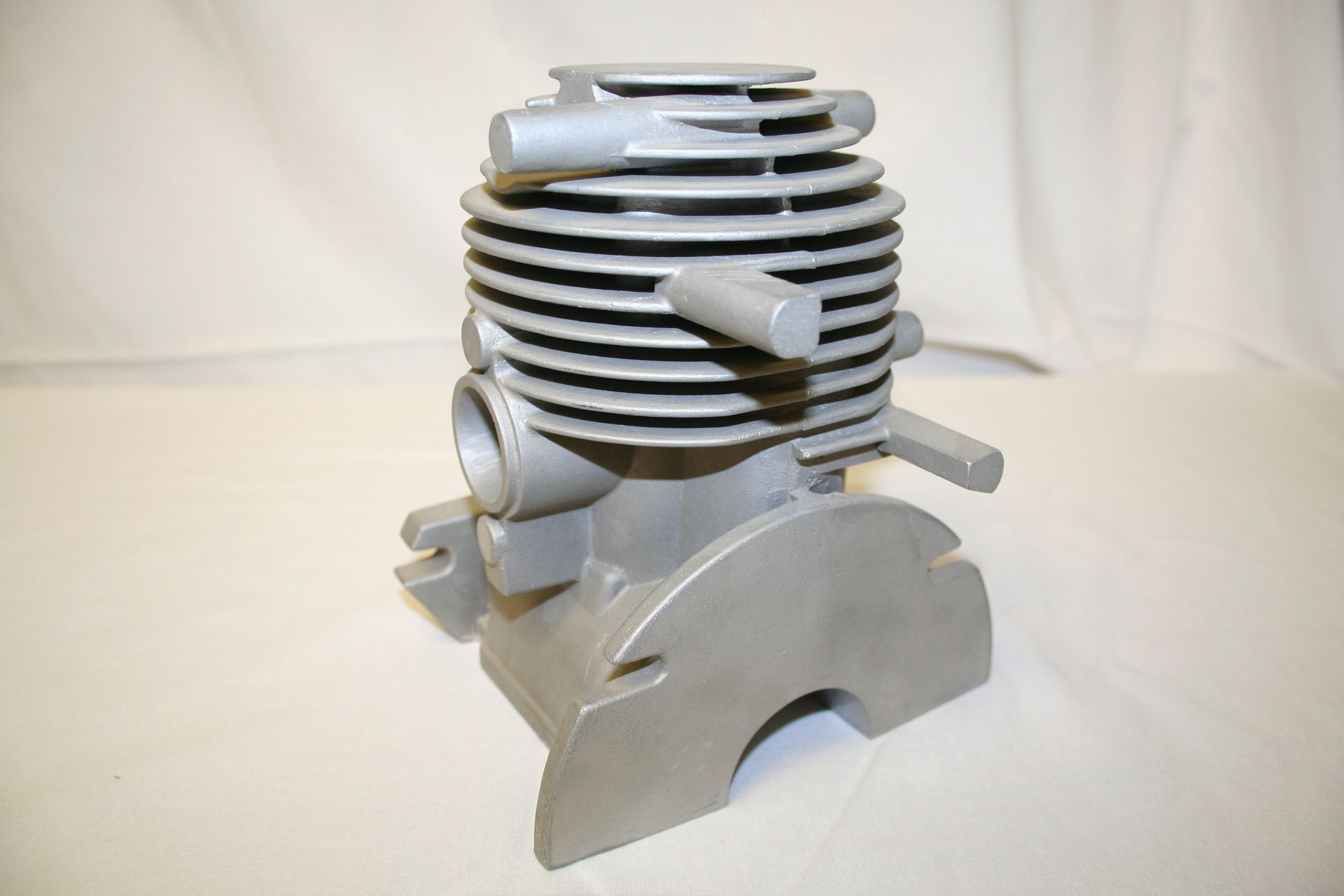

Aluminum
Light, machinable parts. A356 and other alloys.
Aluminum castings →Ductile Iron
Strength and toughness. ASTM A536 grades and ADI.
Ductile Iron castings →

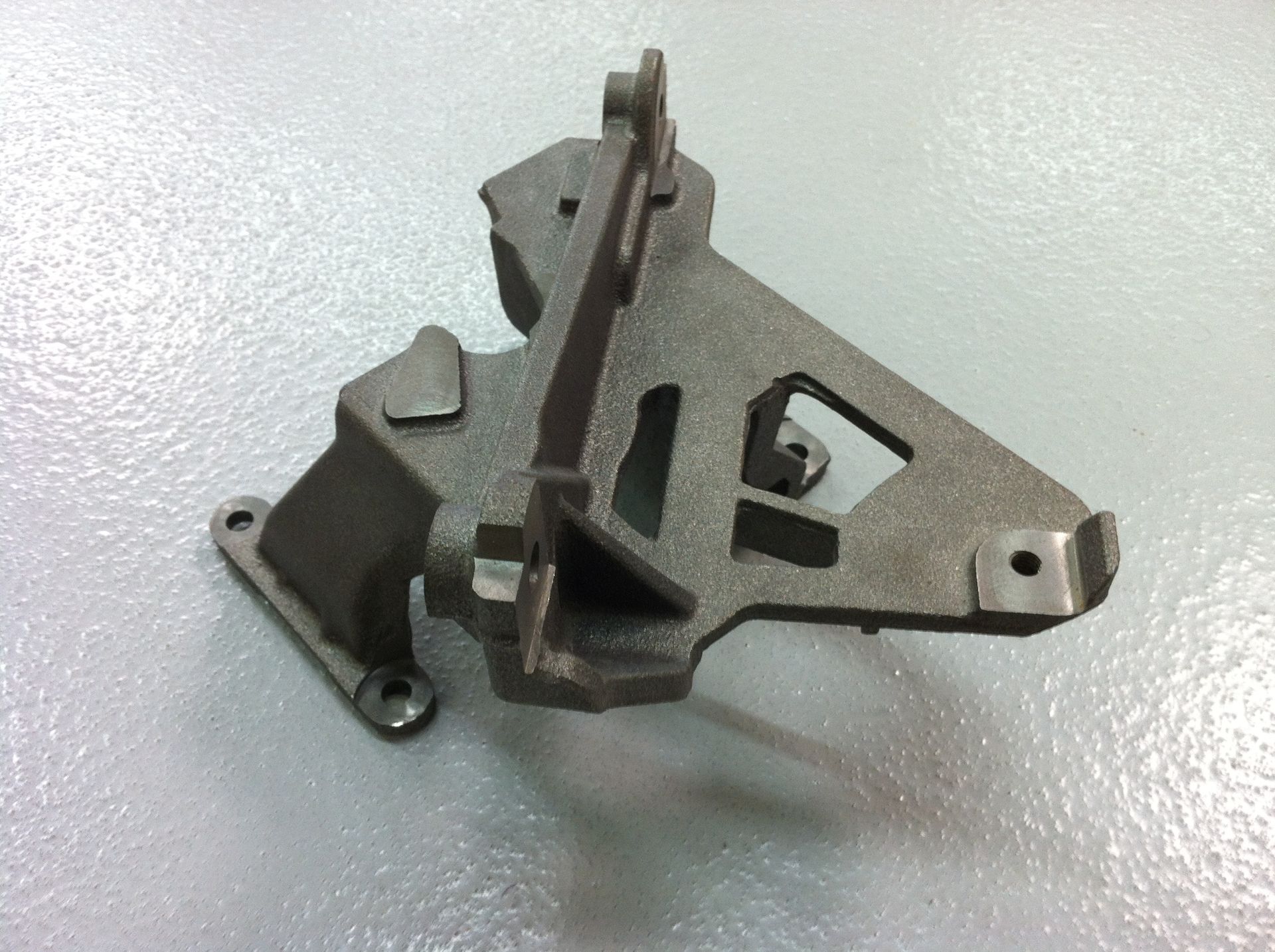

Gray Iron
Damping and machinability. ASTM A48 Class 25 to 40.
Gray Iron castings →
Steel
Carbon, low-alloy and stainless for demanding service.
Steel castings →Checked on every print before tooling is built
These are the problems that usually show up later, in the mold, in machining, or in a failed test. We look for them before tooling is built.
- WALLS
Thin walls and heavy sections
Walls too thin to fill and heavy spots that shrink are the most common casting problems. We point them out before tooling is built.
- CORES
Cores and passages
Internal passages need cores that can be made, held and cleaned out. We check them before tooling is built.
- STOCK
Machining stock
Machined faces and bores need enough stock to clean up. We plan it into the pattern before tooling.
- TOLERANCE
Tolerances vs. sand
Some print tolerances are tighter than sand casting can hold. We flag those features so they get machining stock instead of becoming rejects.
- TESTING
Testing callouts
X-ray, pressure tests, test bars and other print notes add cost and lead time. We list every one on the quote.
- FIT
If your part isn't a good fit, we'll tell you quickly.
You get a straight answer before anyone spends time on a quote.
From pattern to casting
The pattern decides the part. We design and control it, so the casting comes out the way the print needs it. Two of our jobs: a ductile iron motor frame and a machined steel part.
CPM Industries has demonstrated time and time again to be dependable and reliable to work with. They will be there when you need them.
John · Supervisor of Engineering, electric component manufacturer
Send the print.
We'll tell you if it's a fit.
You'll hear back within one business day. The first reply confirms we have your RFQ and tells you if it's a fit. Then we quote. NDAs signed on request. No print yet? Send a photo, a sketch or a question.
630.469.8200 · Monday to Friday, 7:30 AM to 4:00 PM CT
What to send
- 01 PDF drawing and CAD model
- 02 Alloy and quantity
- 03 Drawing revision and specs
- 04 Machining, heat treat, inspection, and documentation needs
